£7.28 Exc VAT

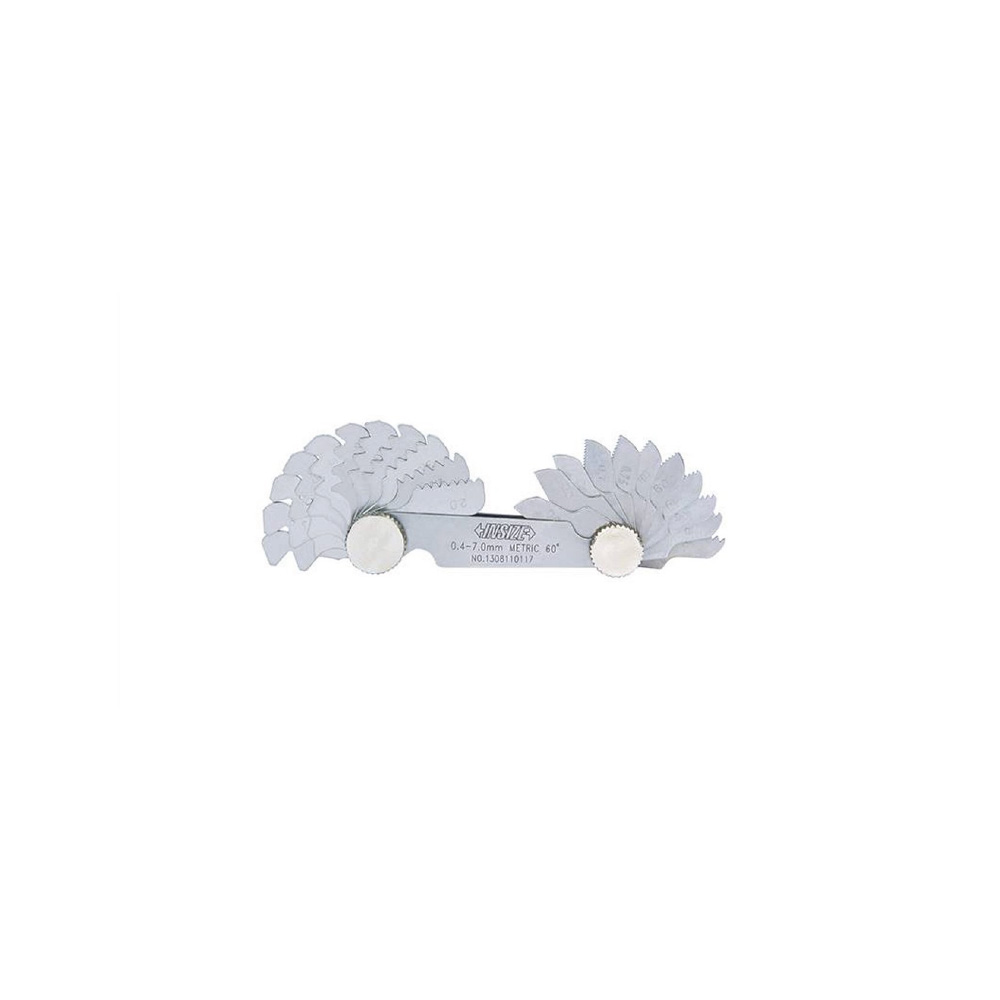

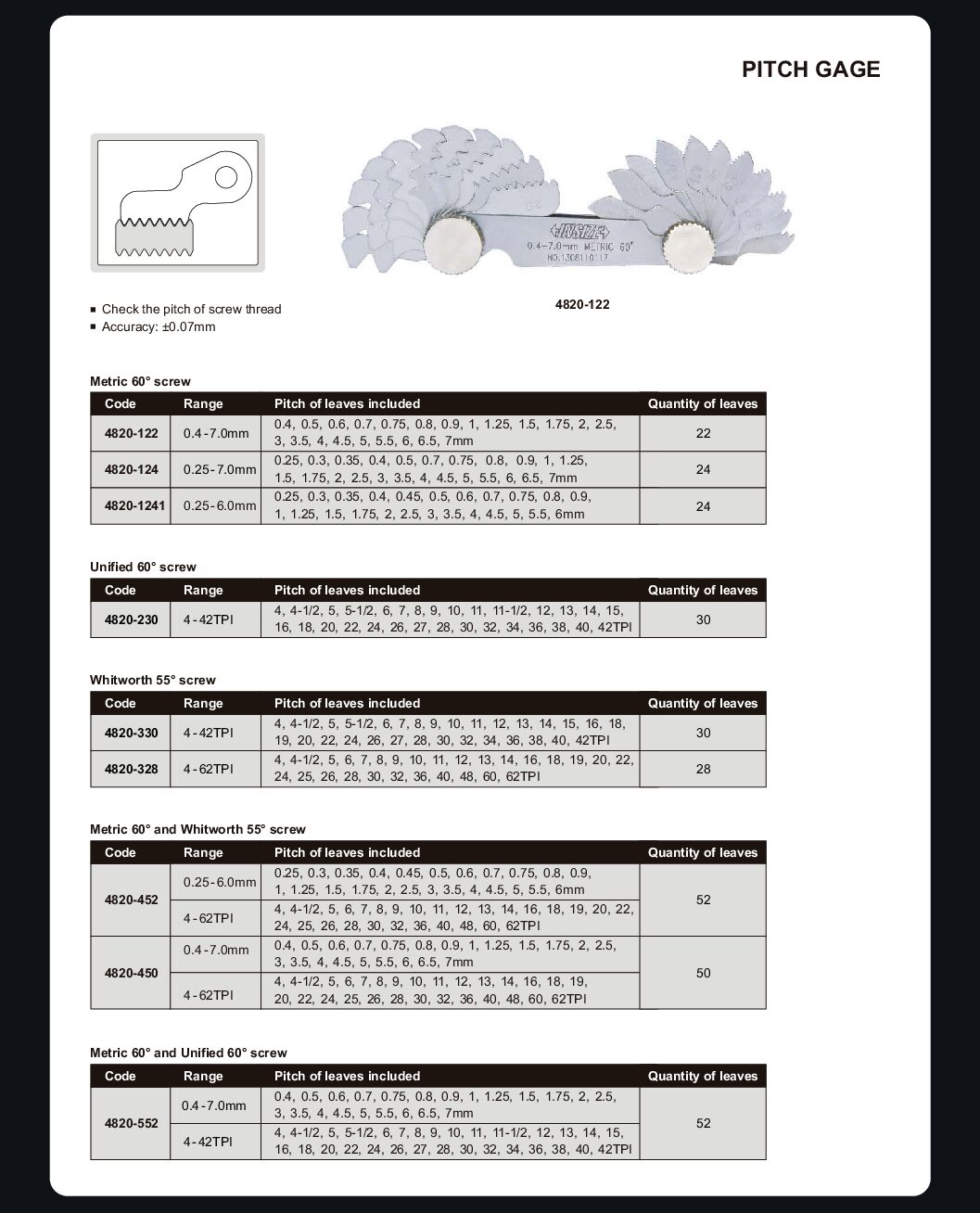

The Insize 4820 Pitch Gauges for measuring the pitch or lead of a screw thread. The Gauge is made of carbon steel so it does not damage the thread. Metric 60 degree 0.25-7mm and whitworth 55 degree 4-62 TPI.
1 in stock
1 in stock
| Category | Measuring |
|---|---|
| Sub Category | General Gauges |
| Thread | Metric 60° and Whitworth 55° |
| Sub Category 2 | Thread Pitch Gauges |
| TPI | 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 19, 20, 22, 24, 26, 28, 30, 32, 36, 40, 48, 60, 62 TPI |
| Range (mm) | 0.25-6 |
| Range (inch) | 4-62 TPI |
| Qty of Leaves | 52 |
| Pitch | 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm |
| Thread | Metric 60° and Whitworth 55° |
| Brand | Insize |
